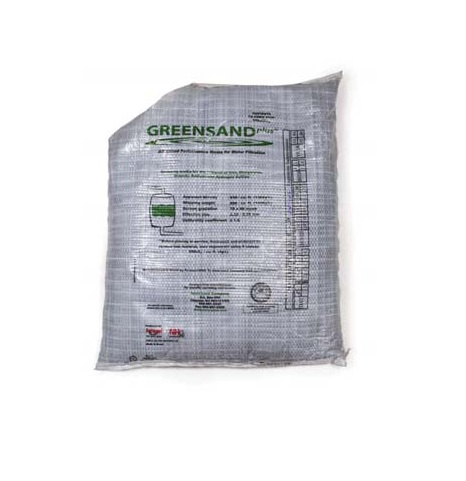

Manganese GreensandPlus (55) 1/2 cubic foot Bags (MANG-PLUS) (shipping not included)

Shipping is not included. To get a freight quote please email us the following: 1. Your complete Address 2. What product you are ordering 3. The quantity you are ordering 4. How you are going to pay for the product -Credit Card (Visa, Mastercard, Discover, American Express)-Prepay -Check-Prepay -C.O.D. -Purchase Order with Bank References Email this information to: glasswatersystems@msn.com glasswatersystems@yahoo.com

GreensandPlus™ is a purple-gray fi lter media used for removing soluble iron, manganese, hydrogen sulfi de, arsenic and radium from well water supplies. Like its sister product manganese greensand, the substrate media has a manganese dioxide coated surface that acts as a catalyst in the oxidation- reduction reaction of iron and manganese. The difference between GreensandPlus™ and Manganese Greensand is in the substrate that forms the core of the media and the method by which the manganese dioxide coating is attached to that substrate. GreensandPlus™ has a silica sand core and the coating is fused to it while Manganese Greensand has a glauconite core and the coating is ionically bound to it. The silica sand core of GreensandPlus™ allows it to better withstand operating conditions in waters that are low in silica, TDS and hardness. Thus, if you currently are using manganese greensand and are feeding sodium aluminate, you will likely be able to eliminate the aluminate feed by switching to GreensandPlus™. Also, GreensandPlus™ can withstand higher operating temperatures and higher differential pressures than can manganese greensand. The higher differential pressure may allow for a longer run length, but, if nothing else, allows for more operational margin of error. Along with the added benefi ts comes the fact that GreensandPlus™ is an exact replacement for manganese greensand. It can be used in CR and IR applications and requires no changes in backwash rate or times or chemical feeds. GreensandPlus™ has received the WQA Gold Seal Certifi cation for compliance with NSF/ANSI 61. It is available in easy-to-handle 1/2 cubic foot bags. GreensandPlus™ is NOT shipped in a regenerated form; therefore it is necessary, prior to use, to regenerate it contacting the bed for a minimum of 4 hours

Capacity/Cu. Ft.: Iron Alone .................550 gr. (10,000 gal. of water con tain ing 1 ppm iron/cu. ft.) Iron and Manganese ........................400 gr. (7,000 gal. of water containing 1/2 ppm iron and 1/2 ppm manganese/ cu. ft.) Hydrogen Sulfide .................................175 gr. (3,000 gal. of water containing 1 ppm hydrogen sulfide. cu. ft.) Advantages: • Iron removal over wide pH range • Effective removal of hydrogen sulfi de in addition to iron and/or manganese • No harmful effects from a chlorine feed • Low attrition loss for long bed life Physical Properties: Color ....................Black nodular granules Density ............................................85 lbs./cu. ft. Effective Size .....................0.30 - 0.35 mm Uniformity Coeffi cient ...............................1.6 Mesh Size .....................................18 X 60 Attrition Loss Per Year ..................................2% Conditions for Operation: Raw Water pH .......................................6.2 - 8.5 Bed Depth ........................30 in. Freeboard ............................................35 - 50% Service Flow Rate ............................2 – 5 gpm/sq. ft. (5-12 m/hr) Backwash Flow Rate ......................... 12 gpm/sq. ft. at 55ºF (30 m/hr at 13ºC) Maximum Temperature ...............No Limit Maximum Practical Limit of Iron (Fe++) or Man ga nese (Mn++) In Raw Water ...............................15 ppm. Maximum Practical Limit of Hydrogen Sulfi de (H2S) ................5 ppm.
