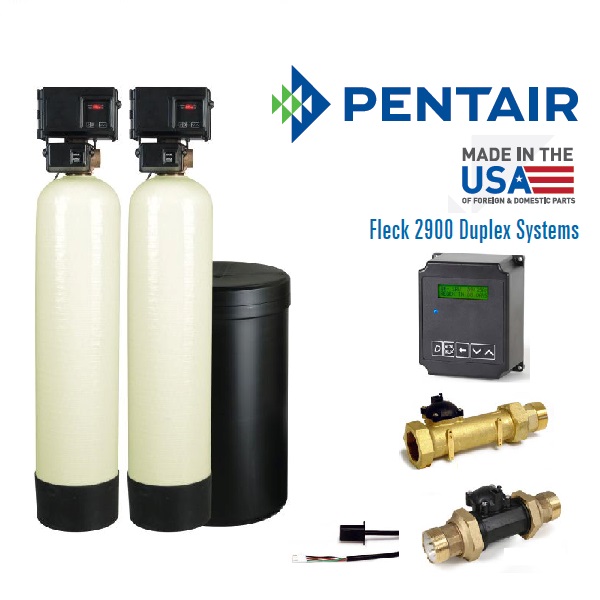

2900S NXT 2" Duplex Water Softener Systems 5 6 7 and 14

Product Features

• Incorporates 2 time-tested hydraulically balanced pistons to independently pilot service flow and regeneration

• Brings great performance and versatility to commercial/industrial applications

• For use with the single or multiple tank systems

• Softener Application Capabilities Up to 36” Tanks (5gpm/sq. ft.)

• Service Flow Rate 106 GPM (15 psi drop)

• Available with 7 or 12 day time clock or meter to control regeneration

• Lead-free brass valve body for superior strength and durability

• No hard water bypass piston

• Filter Application Capabilities Up to 24” Tanks (10gpm/sq. ft.)

• New Drain Size Fitting of 1” NPT

• Max Backwash Rate of 35 GPM (25 psi drop)

• Optional NXT controllers available

• Capacities are based on resin manufacturer’s data • All units set at minimum salt settings • When sizing units, use minimum capacity • All flow rates are in Gallons per Minute • All sizes and space required are in inches 2" Meter Range • Std. Range - 21,250 Gallons • Ext Range - 106,250 Gallons

2900/1700-NXT SYSTEM 5 DUPLEX

Features include Fleck 2900/1700 3200NXT Simplex System with an electronic meter for each valve and includes two commercial brine tanks with the Clack 454 commercial shutoff valve.

Meter Immediate (Interlock) (2 – 4 Valves) This is a 2 to 4 unit system, each unit having a meter, and all in service. Only one unit is allowed in regeneration at a time. A unit regenerates immediately when the available volume of treated water drops to zero (0) and no other unit is in regeneration.

2900/1700-NXT SYSTEM 6 DUPLEX Features include two Fleck 2900/1700 3200NXT Simplex Systems with one 2" electronic meter for the system, also includes two commercial brine tanks with the Clack 454 commercial shutoff valve.

Meter Immediate Series (2 – 4 Valves) This is a 2 to 4 unit system, all in service, with one meter for the entire system. When the entire system volume of treated water drops to zero (0), it requests the first unit to go into regeneration. Then, when the first unit is done regenerating, the second follows, and so on.

2900/1700-NXT SYSTEM 7 DUPLEX Features include two Fleck 2900/1700 3200NXT Simplex Systems with one 2" electronic meter for the system, also includes one commercial brine tank with the Clack 454 commercial shutoff valve.

Meter Alternating (2 Valves) This is a 2 unit system, with only one unit having a meter and only one unit in service. When the volume of treated water drops to zero (0) in the unit in service, it requests regeneration. This causes the unit in standby to move to service. Then the unit requesting regeneration moves to standby and begins regeneration.

System 14 Meter Progressive (2 – 4 Valves) This is a 3 or 4 unit system, each unit having a meter, one unit in service and all other units in standby. As flow rates increase,units in standby go into service. As flow rates decrease units in service go back into standby until only one unit is in service. Only one unit is allowed in regeneration at a time. When the volume of treated water drops to zero (0) in the unit in service, it requests regeneration. This causes the unit in standby to move to service. Then the unit requesting regeneration moves to standby and begins regeneration.
