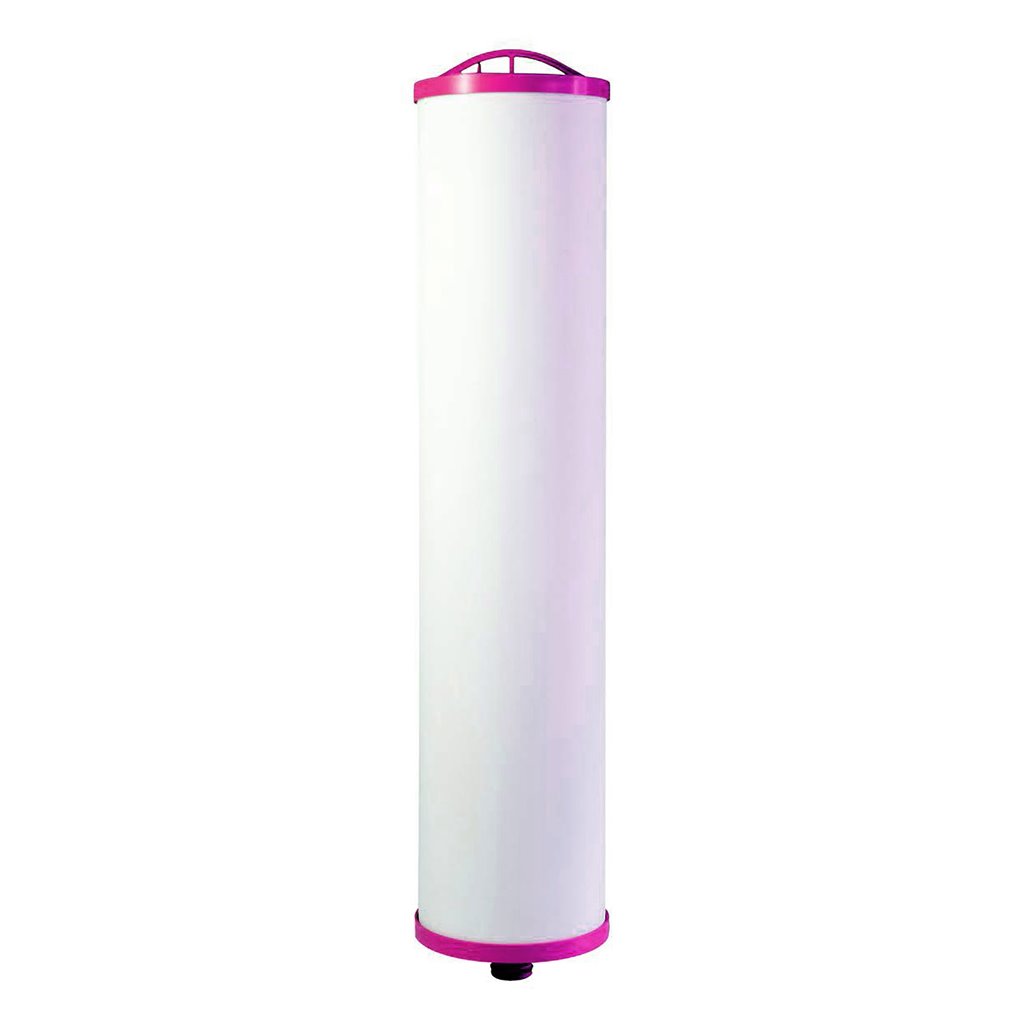

PIONEER AS CART, Arsenic III and V Removal Cartridge, CT-5020-0640RD-F11

The PIONEER As cartridge filter for use with the PIONEER SYSTEM features ATOMUS F11, an NSF/ANSI 53 and 61 certified filtration media which utilizes an engineered binary mixed metal adsorption media for the simultaneous removal of both Arsenic III and V from potable water.

Designed for use in both residential and commercial point-of-entry (POE) applications to meet or exceed EPA reduction requirements for Arsenic in water systems, plus reduction of phosphates, silica, chromium, lead, and vanadium.

The PIONEER As cartridge system has been certified for 120,000 gallons of filtration life at 7gpm flow to reduce Arsenic below the USEPA enforceable maximum contaminant level (MCL) regulation in public drinking water of 10ppm.

PIONEER As cartridge system is proven to provide a maximum removal capacity and improved stability against pH upset to prevent possible desorption of bound Arsenic both during use and in landfill conditions, ensuring successful evaluation against USEPA TCLP and California Wet Tests solutions.

APPLICATIONS:

Residential Light Commercial Industrial water treatment Small systems TECHNICAL SPECIFICATIONS

Physical form: Dry granular media EBCT: 30 seconds – 3 minutes Mesh size: 0.2 – 2.0 mm pH range: 5.5 – 9.5 Surface loading rate: Up to 7 gpm/sq.ft. Bulk Density: 50 lbs/cu.ft. FEED WATER REQUIREMENTS

pH: 5.5 – 9.5 Total Arsenic: 0.010 - 0.100 mg/L Iron: < 0.3 mg/L Manganese: < 0.05 mg/L Phosphate: < 0.55 mg/L Silica: < 35 mg/L Total suspended solids: < 5 mg/L Sulphate: non-detect Vanadium: < 0.05 mg/L Fluoride: < 1 mg/L Turbidity: 5 NTU Hardness: < 300 mg/L
